This compact cabinet delivers quite a punch. With a 25 cm Kevlar/paper driver and a 200W amplifier, it is surprisingly powerful for its size. Whether you're putting on a movie or playing an album, it adds depth and dynamics without being overpowering. It is a true all-rounder that stands its ground in both movies and music.

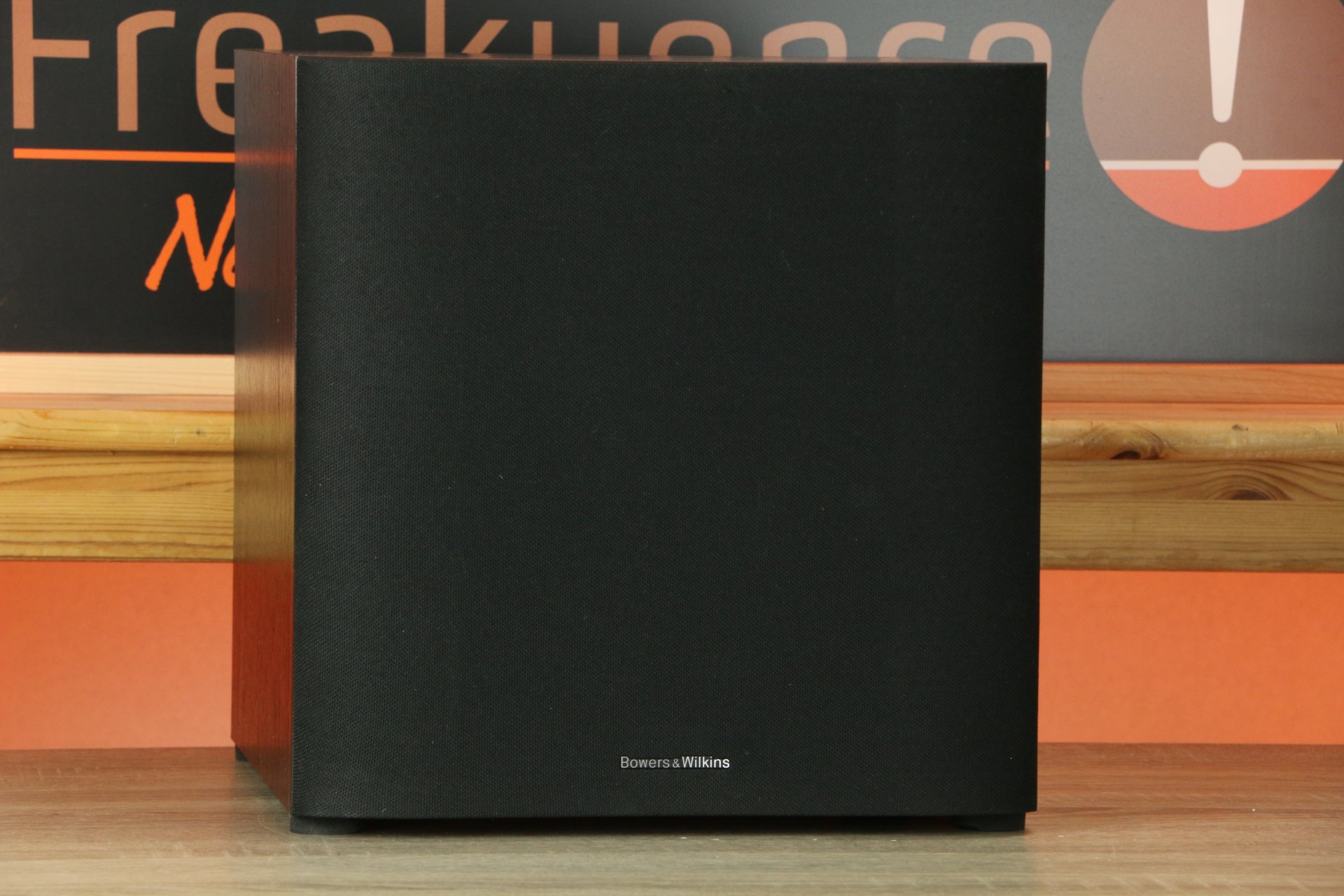

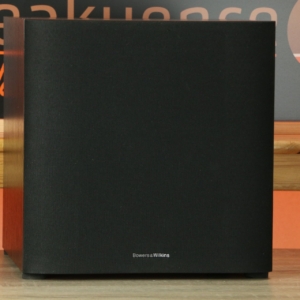

Pins of the cover broken off but it clips hear!

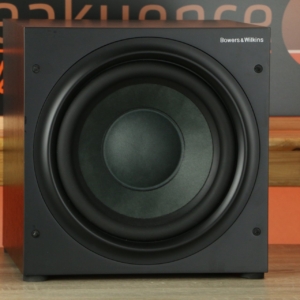

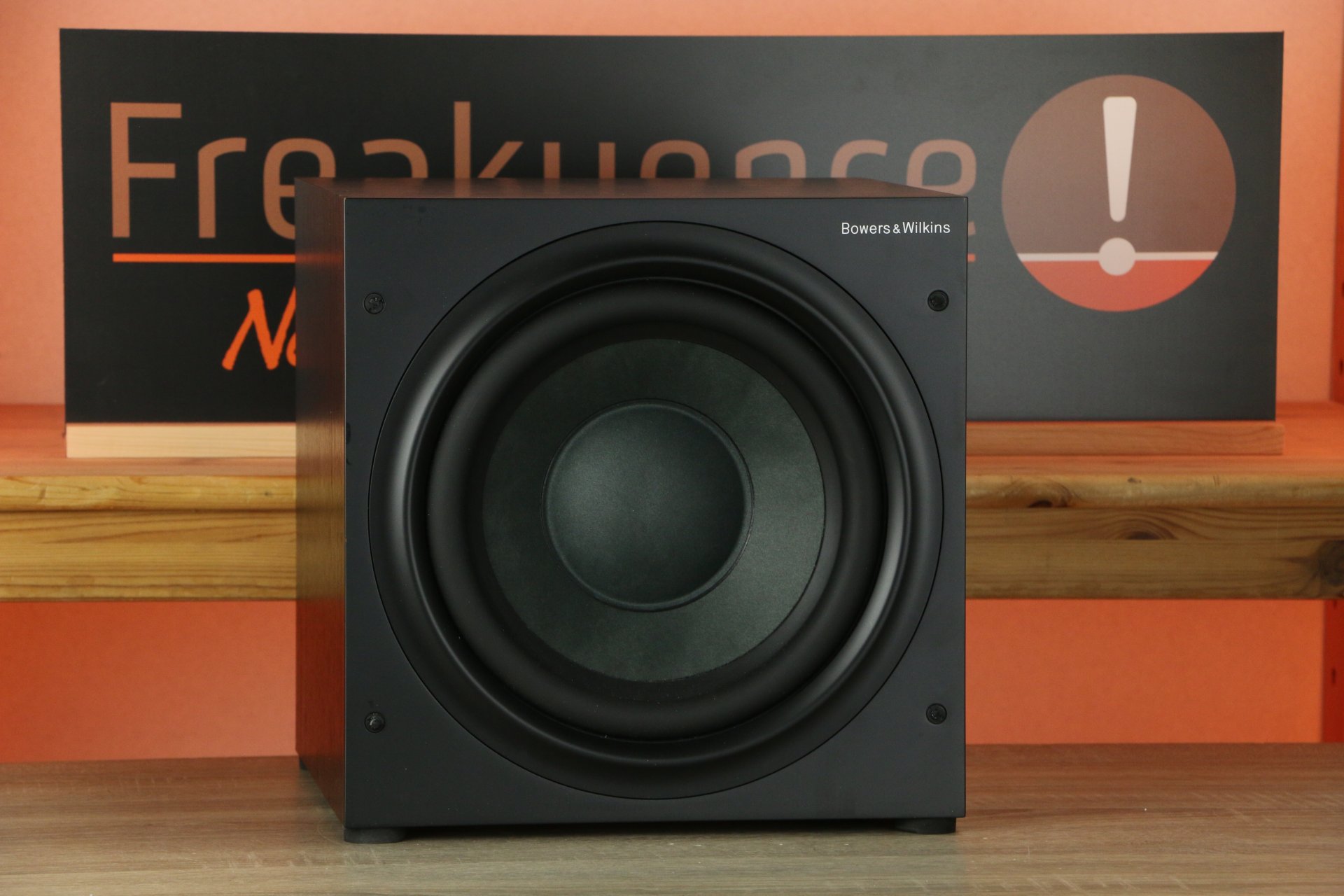

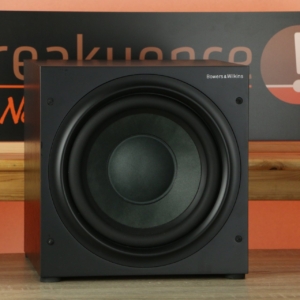

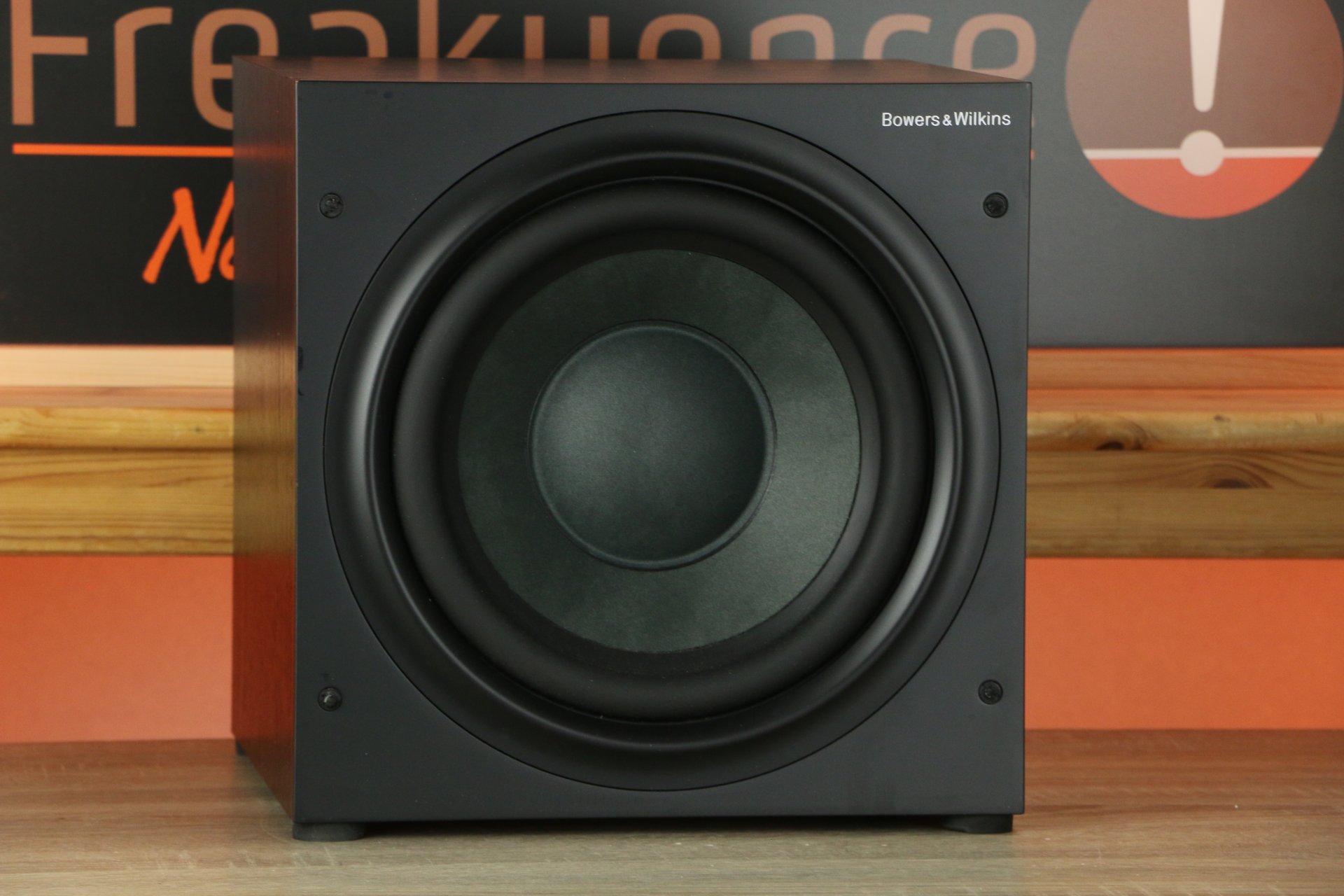

The B&W ASW610 is an active subwoofer that provides your audio system with deep and accurate bass. With its 10-inch driver and 200W Class D amplifier, this subwoofer delivers impressive bass output that is both powerful and controlled. Thanks to its sealed enclosure, the soundstage remains tight and detailed, with no unwanted resonances.
Despite its compact size, the B&W ASW610 is capable of moving large volumes of air, resulting in a dynamic and immersive listening experience. Whether listening to music or watching a movie, this subwoofer adds an extra dimension to your audio experience by reproducing low frequencies with precision and depth.
Want to experience the B&W ASW610 for yourself? Schedule a listening session in our listening room and discover how this subwoofer takes your sound reproduction to the next level.
Dimensions: Height: 310 mm (12.2 in) excluding feet or spikes 322 mm (12.7 in) including feet 338 mm (13.3 in) including spikes Width: 310 mm (12.2 in) Depth: 347 mm (13.66 in) excluding grilles 375 mm (14.8 in) including grilles and control knobs
Weight: 12.5 kg (27.6 lb)

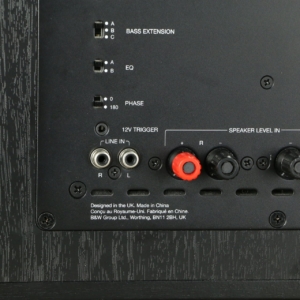

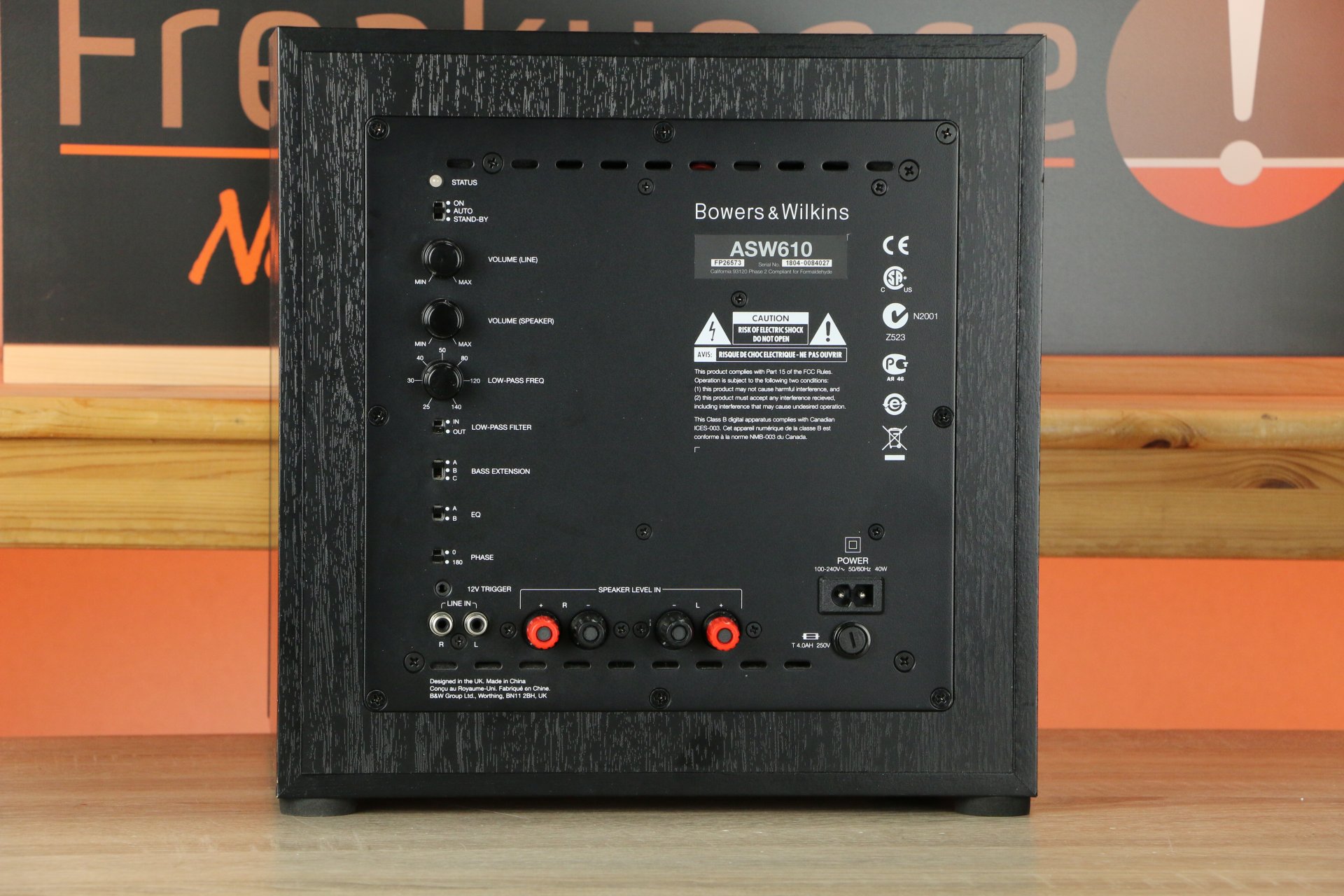

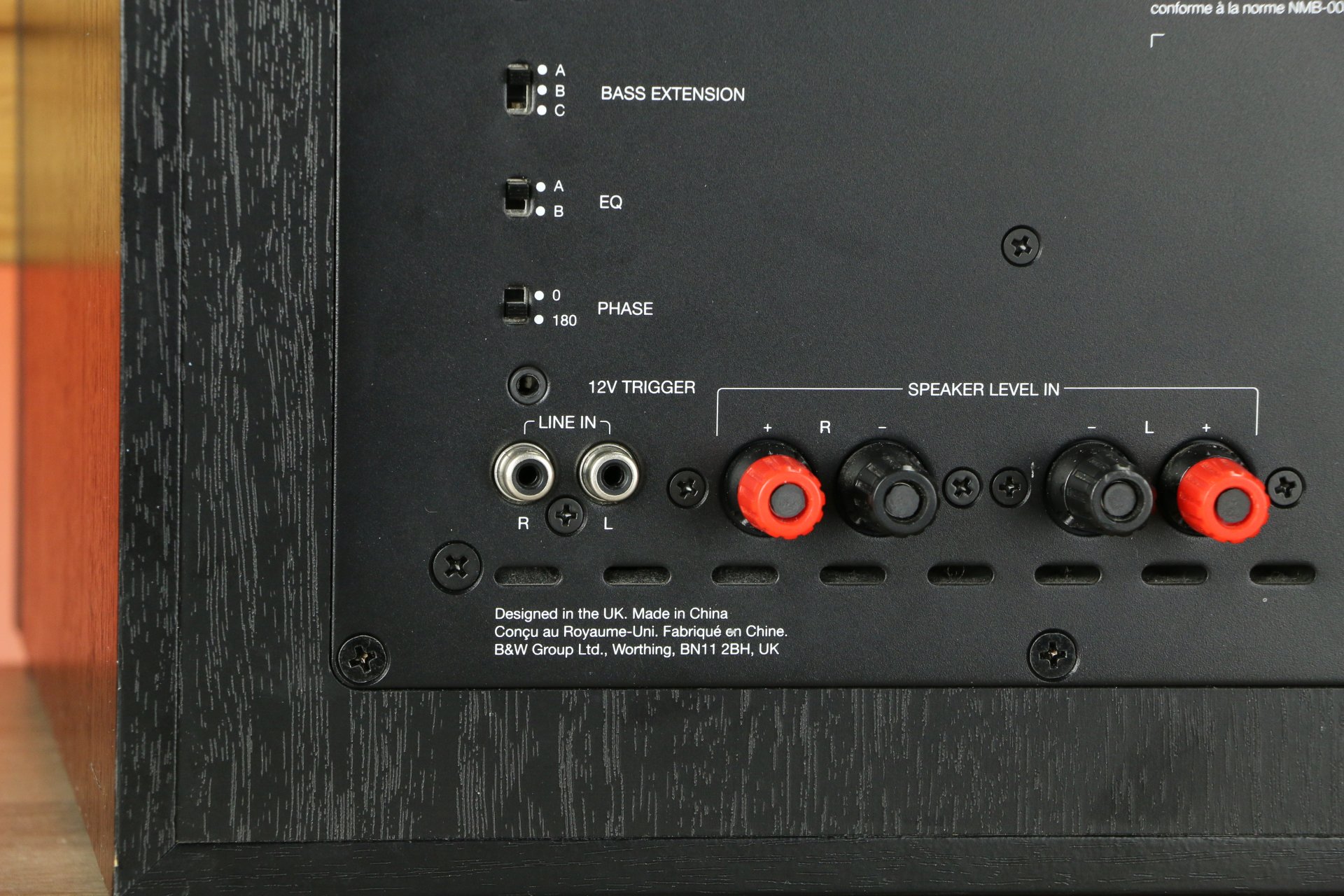

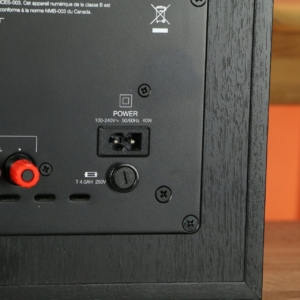

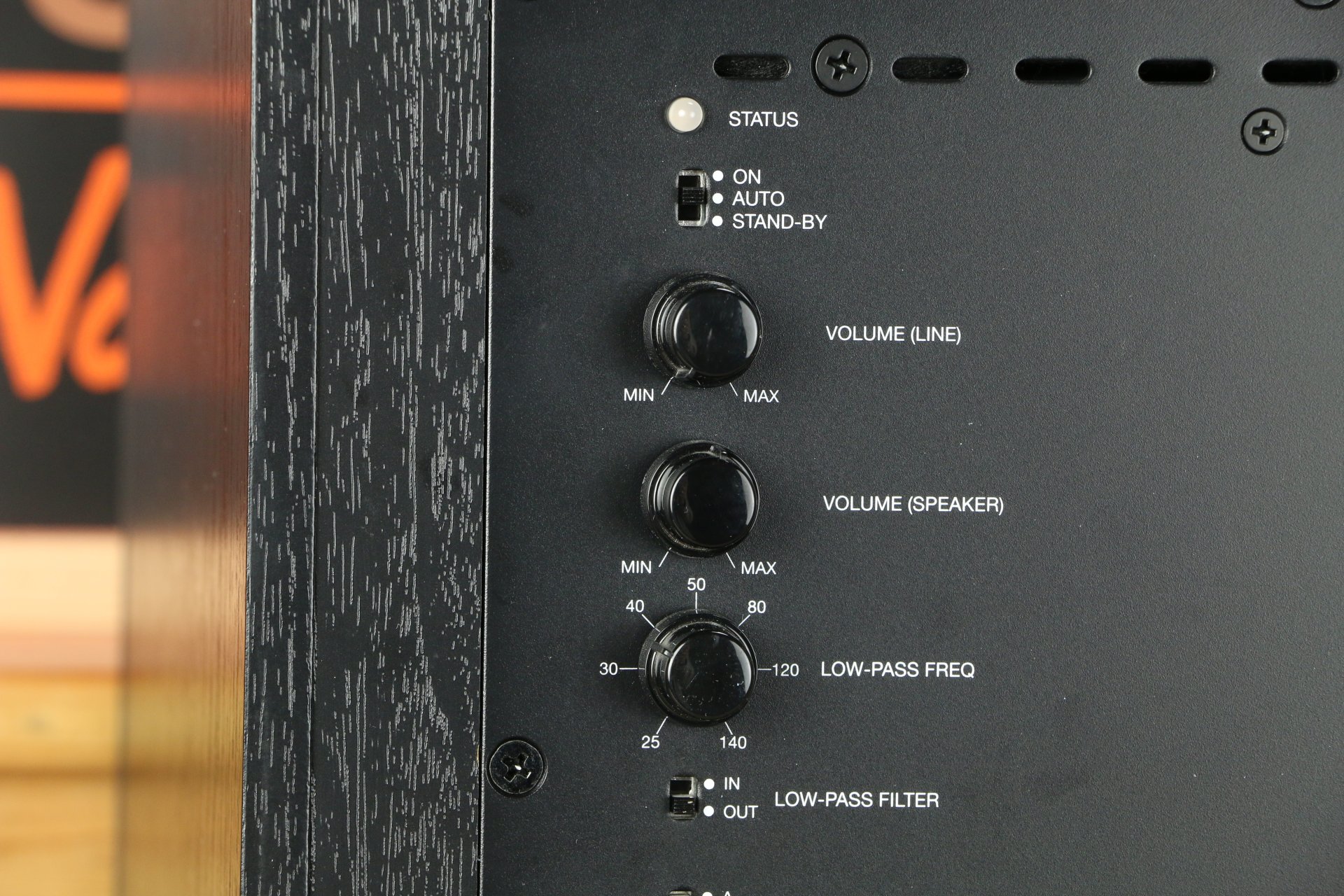

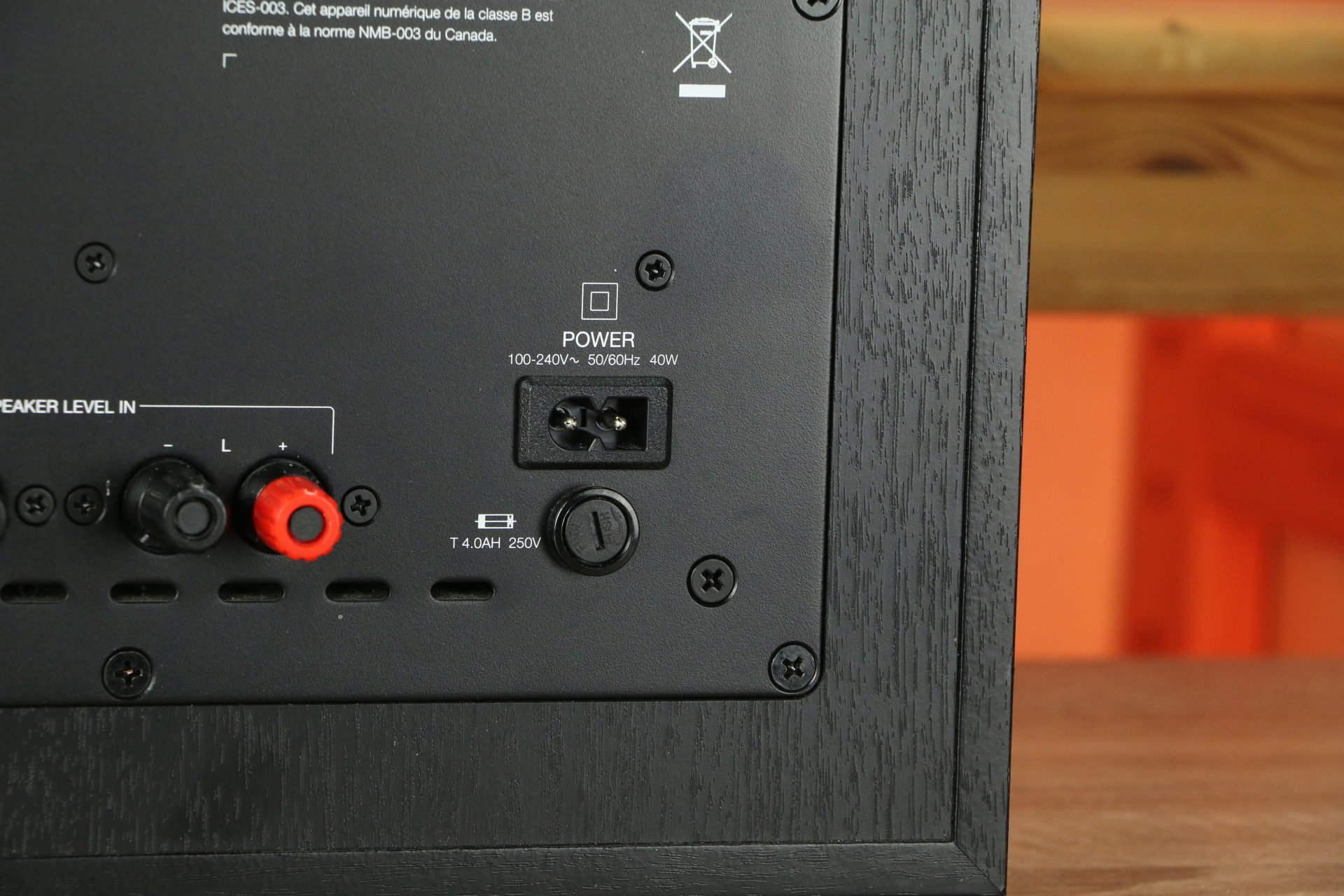

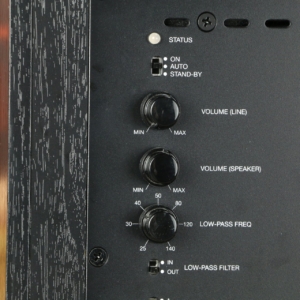

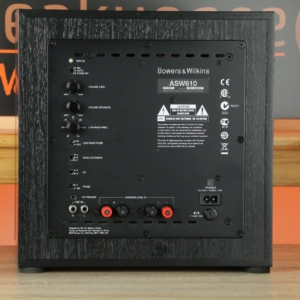

Technical details: Drivers: ø250 mm (10 in) long-stroke paper/aramid fiber cone Frequency response: ±3 dB 27 Hz - 40/140 Hz adjustable (EQ on A) Technical features: Input level (line input) Input level (speaker input) Low-pass filter frequency (line input only) Low-pass filter bypass Bass extension Bass roll-off tuning Auto sense on/standby Phase switch Description: Active enclosed subwoofer system Frequency range: -6 dB at 20 Hz and 25/140 Hz adjustable (EQ on A) Inputs: Line input (RCA Phono) Speaker input (terminal) 12 V trigger (3.5 mm jack) Low-pass filter: Active 4th order, variable cutoff frequency Amplifier output power: 200 W Power consumption: 40 W / 0.5 W standby Input impedance: 33 kΩ Signal-to-noise ratio: >90 dB Bass Expansion: -6 dB at 20 Hz (position A) -6 dB at 25 Hz (position B) -6 dB at 30 Hz (position C)

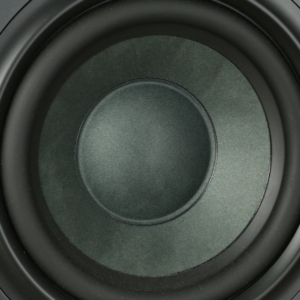

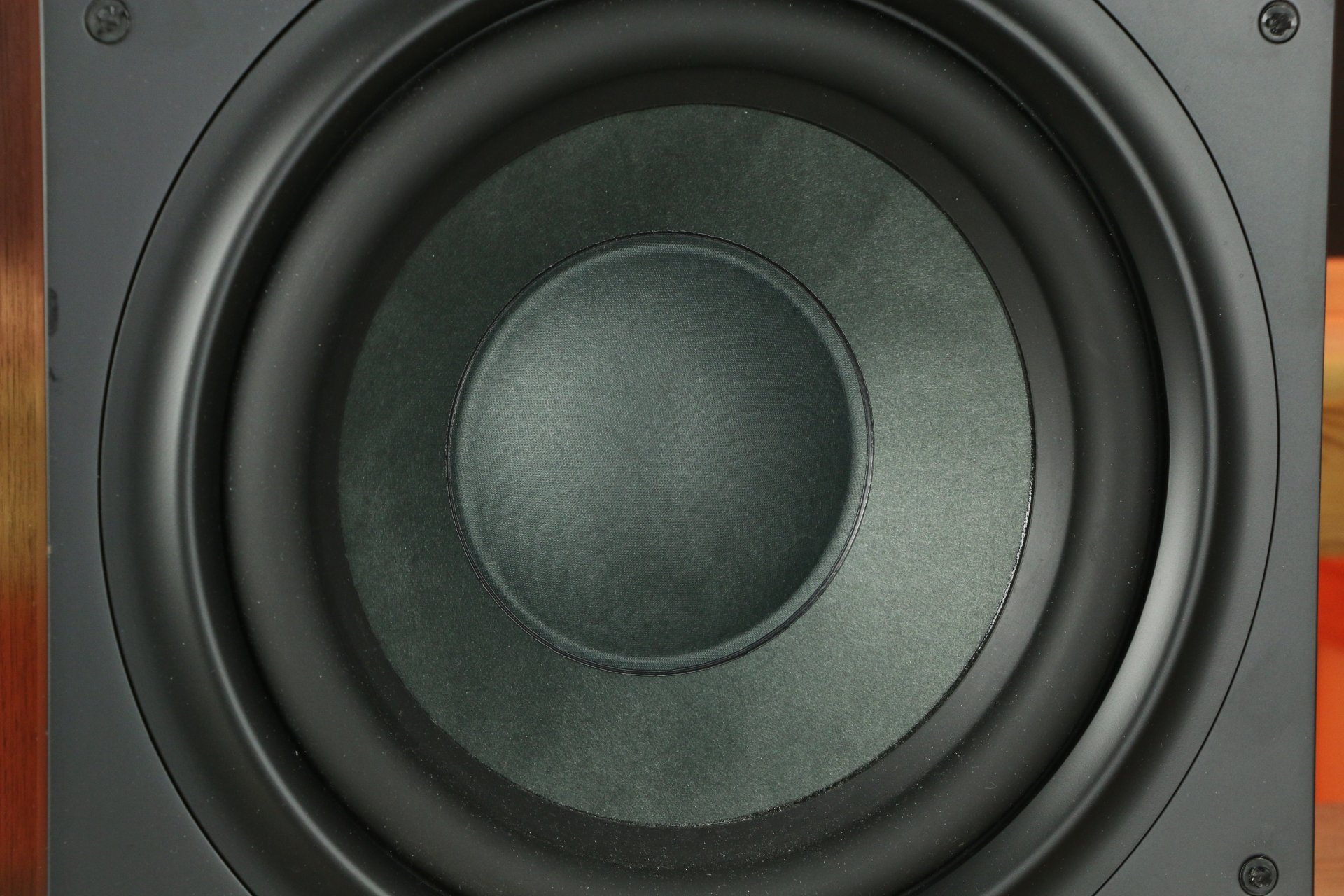

The B&W ASW610 is designed as a compact subwoofer with powerful performance. Bowers & Wilkins has used a 10-inch paper/kevlar cone driver in its design that provides tight and deep bass. The cabinet is sturdy and carefully designed to minimize resonances, made of high-quality MDF panels. The internal amplifier delivers 200 watts of power, offering impressive control. Design elements such as Flowport technology optimize airflow and reduce distortion. B&W prides itself on the craftsmanship and precision with which their products are made, often using materials from trusted sources to ensure consistency and quality.
Bowers & Wilkins was founded in 1966 by John Bowers in Worthing, England. The first loudspeaker, the P1, was assembled by hand in a workshop behind an electronics store. In 1968, the company was officially registered as B&W Loudspeakers Ltd. In 1974, the brand introduced the DM6, followed by the 801 in 1979, a model used in recording studios. Bowers & Wilkins developed several models in the 800 Series in the following years. In 1998, its R&D center, the Steyning Research Establishment, was opened. In 2015, the company introduced the 800 Series Diamond. Head designers such as Laurence Dickie and later John Dibb contributed to product development. In 2020, Bowers & Wilkins was acquired by Sound United LLC. It is headquartered in the United Kingdom.
